In 1990 I was invited by Friedrich Schenker to take part in a concert in the series
MUZIKA contemporary composers interpret music-related works of the insane.
The scores and notations were taken from the Prinzhorn Collection which is devoted to the artistry of the mentally ill

The concert was presented in Berlin at the Academy of Arts ( East Berlin) and my Four-Piece Percussion Installation accompanied members of the Chamber Ensemble for New Music Berlin (KNM) in 13 March-Waltzes from Scores by Oscar Herzberg.


Studying the programme notes of the concerts I noticed a small reproduction of another score, one of the Three Leaves (Drei Blätter) by Lorenz Mathias Seitz, together with a text:

small photo of the first leaf
Lorenz Mathias Seitz, a labourer, was born in 1877 in Oeschelbronn. While still in good health he served 5 years in the Foreign Legion and also travelled alone through North Africa and the Near East. During this period he learnt Arabic and converted to Islam. In 1921, suffering from schizophrenia, he was committed to the Wiesloch asylum. His Three Leaves, written on toilet paper, show continuous lines of script whose characters consist of right angles in various positions combined with up to three additional dots. We know neither the meaning of this text nor of its characters. They might well be some kind of secret code or an attempt at a stylised Arabic script.
For a longer account of his tragic but adventurous life, see here.

The notations by Lorenz Mathias Seitz were interpreted by Sven-Åke Johansson as an "alphabet of gestures with individual percussive sounds" in his Solostück für Konzertbecken - a solo for symphonic cymbals.

Looking at the score it occurred to me that Seitz's composition might be open to another interpretation. It reminded me of a simple cipher I had been taught as a child, popularly known as "The Masonic Code", "the code that every schoolboy knows", or, more prosaically, "Pig Pen".

Coding and decoding are performed with the help of a grid and a diagonal cross. The 26 letters of the English alphabet are inscribed, two in each space:

Drawing of the traditional pig pen grid

In the encoded message each letter is represented by the outline of its enclosing space whereby the second letter in the space is identified by an additional dot. The example shows the symbols for the word CAT.

Seitz's notation seemed to be a variation of this system. With his three dots he could accommodate up to four letters into each box and, if his message was in German, he could include the S-Z ligature ß and the umlauts Ä, Ö and Ü and still have room for more:

Drawing of the revised pig pen grid

I made many attempts to interpret the small picture in the programme notes according to variations of this grid but without success. I then wrote to the organiser of the concert, Frau Dr. Inge Jádi, the curator of the Prinzhorn Collection, asking her for reproductions of the Three Leaves. Having received three large photographs and an encouraging letter I set about solving the problem by using a letter-frequency table before trying to reconstruct the grid.

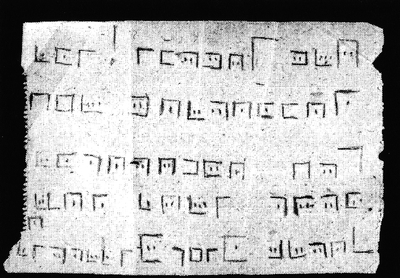

photo of the first Leaf
Prinzhorn Collection inventory number 4400 / 1 recto
The text was not written as a continuous string or in regular groups but - insecurely - was split up into individual words. I noticed that many of the symbols were written large, but unlike the initial capital letters of German nouns, these large symbols were at the ends of the words. Evidently the message was in mirror writing - written from right to left - perhaps inspired by Arabic?

Mirror images of the Three Leaves

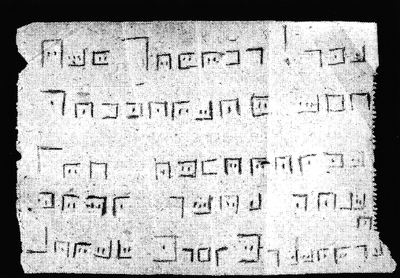

The capital letters of the German nouns are now on the left! photo of the third Leaf  (mirror image)
Inv. Nr 4400 / 1 recto (mirror image)

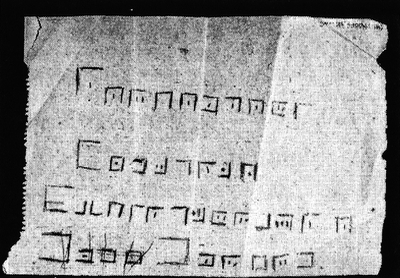

photo of the first Leaf  (mirror image)
Inv. Nr. 4400 / 1 verso (mirror image)

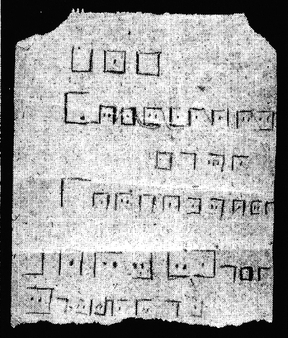

photo of the third Leaf  (mirror image)
Inv. Nr. 4400 / 2 (mirror image)

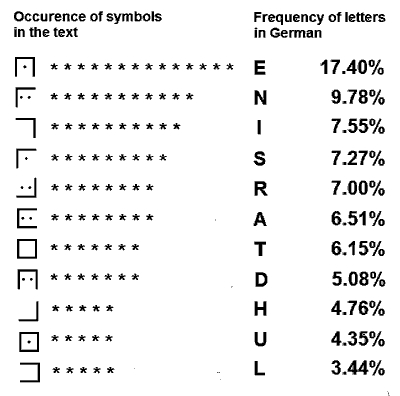

Thanks to Dr. Jádi I now had a larger sample to work on so I made a table comparing the frequency of the symbols in the text with the frequency of letters in the German language.

Table of symbols and frequencies
This table does not provide a complete answer - but it is a useful guide.

Spoiler warning:

Click here if you want to decipher the message yourself.

scroll down for the solution.





According to the table, the most frequent symbol was probably an E and I soon found that my suspected E and I symbols made a convincing German pattern.

annotated photo of the first Leaf Inv. Nr. 4400 / 1 recto (mirror image)

To cut a long story short, the breakthrough came when I decided that the last word could be "Matthias". After that everything fell into place and I concluded that Seitz was using an inverted grid quite like the diagram below. The empty spaces could have been used to accomodate the umlauts.

Drawing of the invertedl pig pen grid
Mirror images German text English translation
photo of the first Leaf  (mirror image) Für Afrika! als
Bekleiter und
Gid(?) empfiehlt
mich aufs beste
Seitz Lang Matthias
For Africa! as
companion and
guide, with my best
recommendations
Seitz, Lang Matthias1
photo of the second Leaf  (mirror image) Heidelberg
Postahse(?)
Psydghatrische
Klmn(deleted) Klinik
Heidelberg
Post office building(?)2
Psychiatric
Clinic
photo of the third Leaf  (mirror image) VON
Pforzheim
nach
Geidelberg
SEITZ Lang
Matthias
FROM
Pforzheim3
to
Heidelberg
SEITZ, Lang4
Matthias
Notes
  1. "Matthias" with two T's - not one as in the programme notes.
  2. "Posta": is Swahili for post office
  3. Pforzheim is a town 6 km from Öschelbronn, the village where Seitz was born.
  4. His father's name was Lang. After the death of his parents he was brought up by his half-sister Katharina Seitz and her husband - see life of M.L.Seitz.

Having spent all the evening and half the night to decipher the code I opened a
bottle of Sekt and drank a toast to the memory of
Matthias Lang SEITZ
and a second glass to his interpreters.
code for cheers

First published in German in the programme notes for a MUZIKA concert at the
Heidelberg Kunstverein
in collaboration with
Freunde Guter Musik Berlin e.V.
Prinzhorn Sammlung Heidelberg

23rd February 1992.
